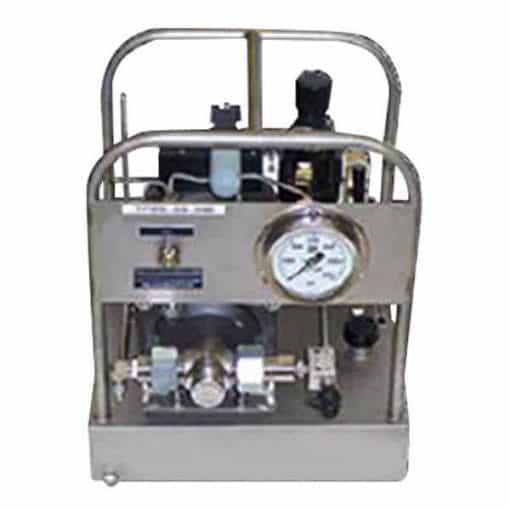

ZTP30K-DAN Air Powered Tensioning / Nut Splitting Hydraulic Pump FEATURES

These pumps are designed and engineered specifically for the most rigorous conditions and to work
seamlessly with the full range of ZAT, ZLW, ZBT, ZDANS, ZQD tools.

SPECIFICATION

(Nut Splitting)

Power: Air Fluid: Oil Max Pressure: 30000(2068) psi(bar) Max flow: 85(0.0232) ADV, 135(0.0368) RET cu. ln./min(L/sec) Fluid Capacity: 2(7.6) Gal(L) Dimension (Height x Width x Depth): 20.3 x 16 x 16(514 x 406 x 406) inch(mm) Weight-Filled: 74(33.6) Ibs(kgs)
